DALI luminaire management
The Manage luminaires tab is located in Room View, and is only visible in rooms and locations with DALI controllers. Unpaired luminaires are displayed on the left, and control channels are displayed with their Paired luminaires (if any) on the right.
To refresh the list of available luminaires, click
Reload list on the left.
Flashing
To flash a luminaire on and off, click the
lightbulb symbol.
This allows a person in the room to visually identify the luminaire so it can be paired to the correct channel.
The luminaire will stop flashing automatically after a brief time, or you can click the
progress indicator to stop it manually.
Pairing

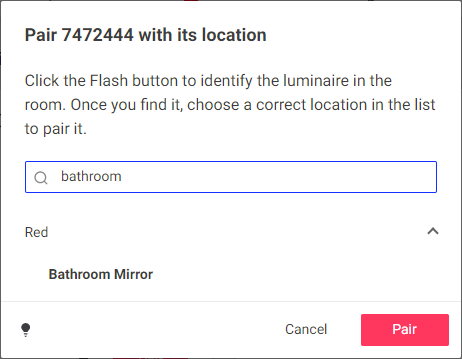

Click the Pair button next to a luminaire to open the Pair Luminaire dialog.
Use the search bar to filter the list of available channels if necessary, then select the correct channel. You can also click the lightbulb symbol in the bottom left corner to flash the luminaire for confirmation without leaving the dialog box. Click the Pair button to complete the process.
The paired luminaire is now shown next to its associated channel on the right. To remove a luminaire from a channel, click the Unpair button.
Deploying changes to the room

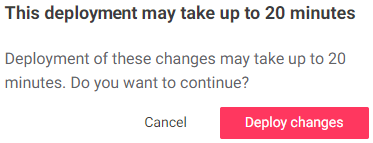

After creating the desired pairings for the room, click the Deploy to room button to opten the Deplyment dialog.
Click Deploy changes again in the dialog to proceed.
Deployment may take several minutes, after which the Manage luminaires page automatically reloads. You can also manually refresh the page from your browser without interrupting the process.
DALI ballast and lamp errors

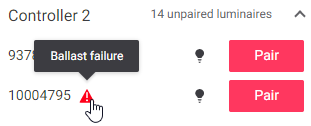

Ballast failure, Lamp failure and Ballast offline errors are indicated by an
error symbol.
Hover your cursor over the symbol to view the error type.

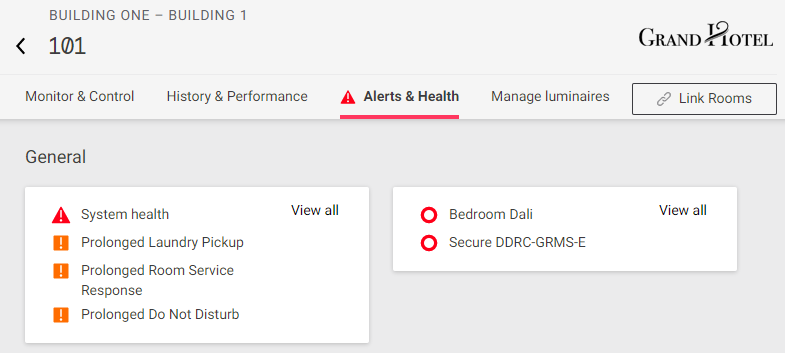

Offline DALI controllers and channel alerts are displayed along with those for all other devices and channels under the Alerts & Health tab.
