Configuration

Configuration includes the following screens:

  • Status > Overview monitors the progress of all room settings updates.

  • Room Profiles sets default behaviors for all rooms under each profile, including seasonal defaults.

Select a Room Profile from the list on the left to view and edit its settings.

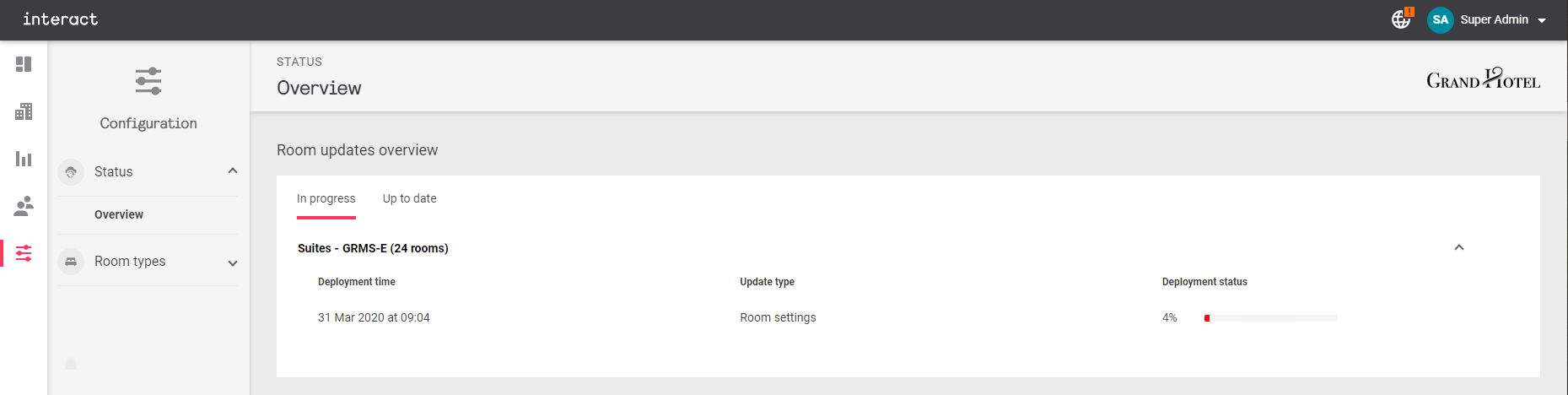

Status > Overview

When changes are made to Room Profiles, the updates are rolled out to all affected devices across those rooms.

The Status Overview screen shows the progress of these updates in real time.

iah config status overview

Room Profiles

This screen contains the following tabs:

  • Room Settings controls default behaviors for the selected room profile.

  • Update Status monitors progress of saved changes to the selected room profile as they are broadcast to each affected device on the system.

  • Manage Seasons enables season-specific defaults in Room Settings, as well as options to modify the number and length of seasons to match local requirements.

Before You Begin: Using Customized Seasons

Manage Seasons settings ONLY apply to the currently selected room profile!

Save time by copying your customized seasons to all room profiles before configuring their settings:

  1. First complete and save the Room Settings and Manage Seasons settings for one room profile.

  2. Under Room Settings, click Apply these settings to other profiles > Choose Profiles

  3. Follow the prompts to copy the room settings to all other room profiles.
    This overwrites all existing settings.

  4. Make any further changes to the other room and venue profiles as required.

Room settings

Select the desired default behaviors and settings for the selected room profile, then click Save and apply.

If seasons are enabled, you can click each season under Room defaults to change the settings for that season. For example:

  • Save energy with seasonally appropriate temperature setpoints for unoccupied rooms.

  • Close blackout blinds on summer days to limit sun exposure.

  • Open blackout blinds on winter days to let sun in, then close them at night to improve heating performance.

iah config room settings

To apply all room settings from the current profile to others:

  1. Click Apply these settings to other profiles > Choose Profiles.

  2. Select which profiles to overwrite, then click Apply settings.

    iah config room settings applyother

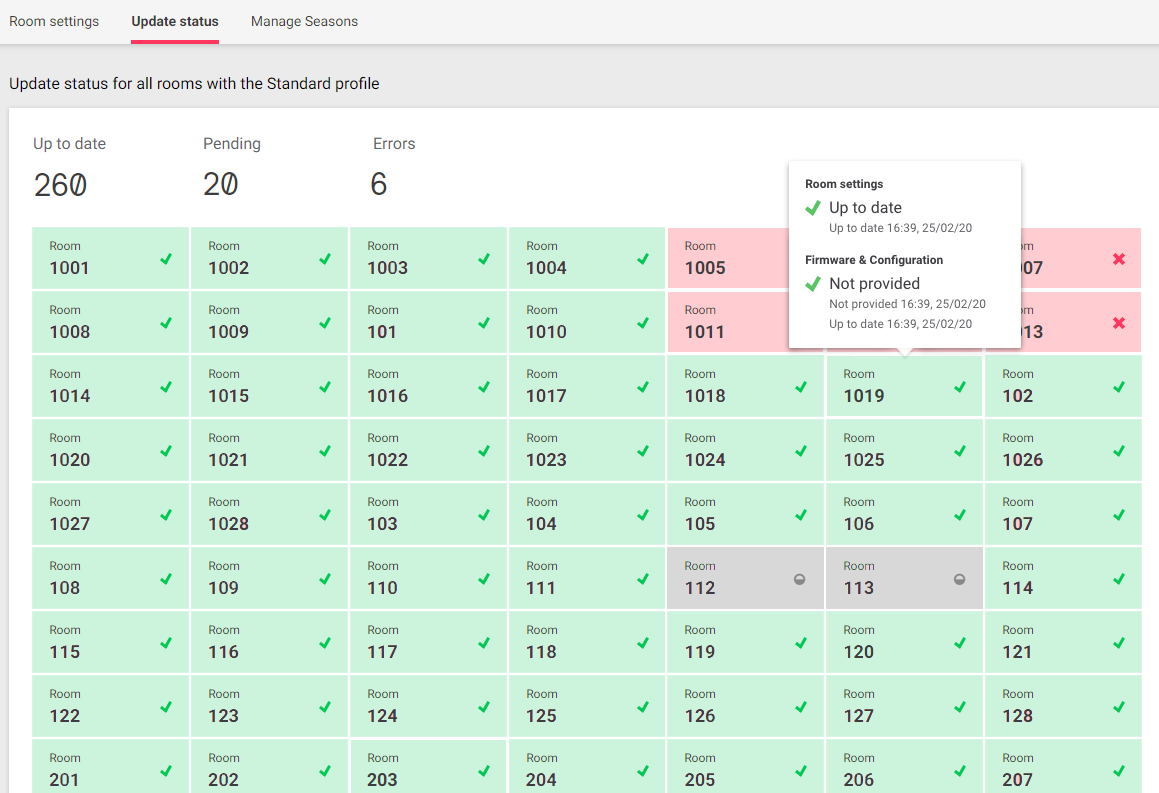

Update Status

This tab shows the current status of updated room settings for the selected profile as they are broadcast to individual rooms across the network.

Click on any room tile to open a tooltip with more information about its status.

iah config room settings update
lightbulb
Tip
You can also return to the Status > Overview screen to check on the update progress of all saved changes across the system.

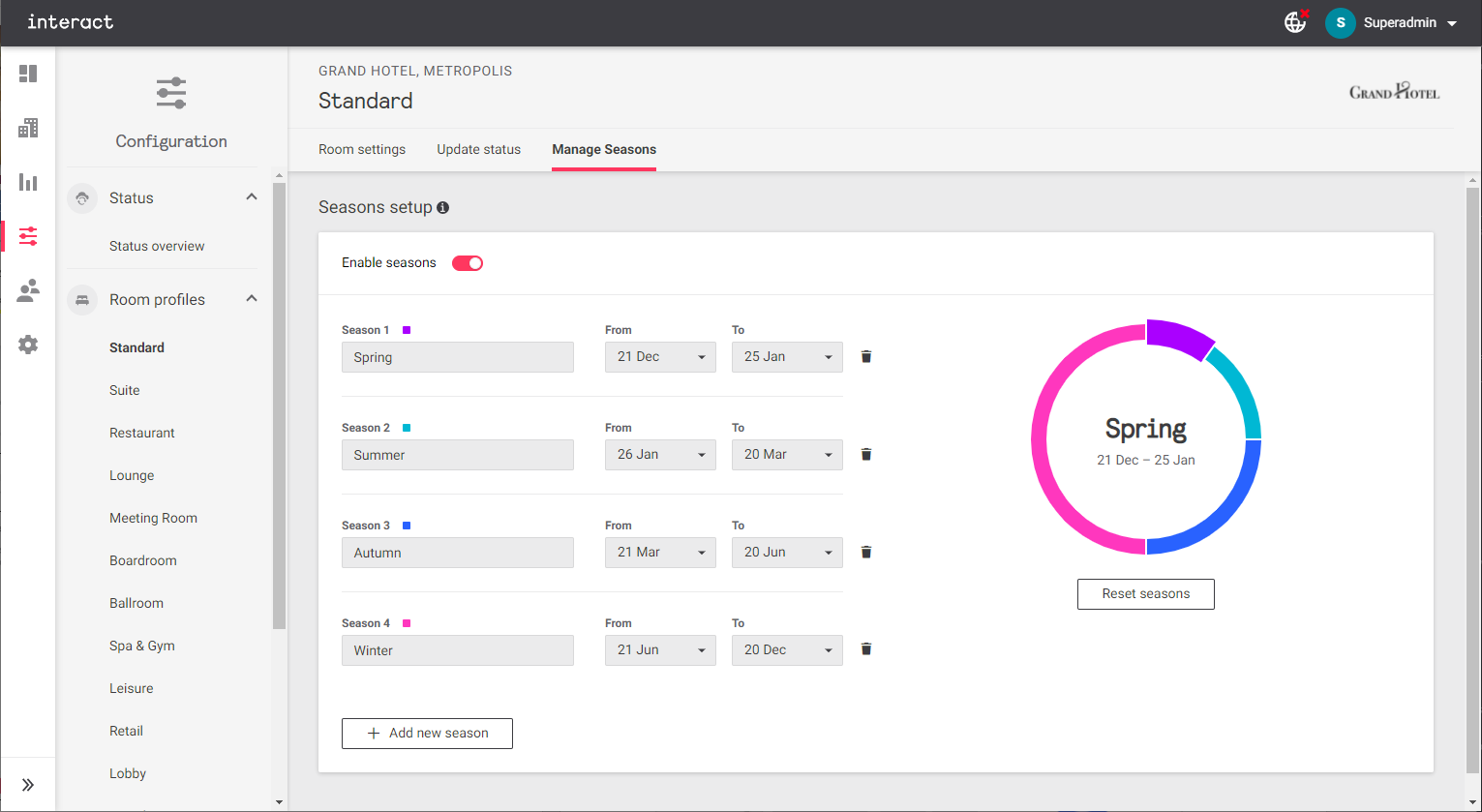

Manage seasons

Enabling seasons allows you to configure seasonal defaults under the Room settings tab.

You can add or remove seasons (up to six total), rename each season, and customize date ranges to match the local climate and traditions.

After making the required changes, click Save and apply to finish.

iah config manage seasons
