Monitor & Control

This tab includes a room status bar and individual tiles for each available service connected to the system. In larger suites, service tiles may be divided into zones - bedroom, living room, etc.

iah room view

Room Status Bar

iah room view status bar

The room status bar includes:

  • Checked In/Out & Occupancy: Based on data from the PMS and user activity in the room.

  • Room Status: Click on each room status to turn it On/Off:

    • Privacy

    • Make Up Room

    • Laundry

    • Service

info
Note
Privacy and Make Up Room are mutually exclusive. Activating one automatically deactivates the other.

  • Mode: Affects HVAC behavior and energy consumption:

    • Auto: Normal operation

    • Green: Activates a wider temperature setpoint tolerance of 2-3°C to save energy, enabling guests to actively reduce their energy consumption.

    • VIP: Preserves the guest’s selected HVAC settings even when the room is unoccupied. Reverts to Auto when guest checks out.

  • Language: Changes the display language on all AntumbraDisplay interfaces in the room:

    • Arabic

    • Chinese

    • English

    • French

    • German

    • Italian

    • Japanese

    • Mandarin

    • Spanish

    • Thai

    • Vietnamese

The language may be automatically set by the PMS during check-in.

info
Note
The Room Status Bar is only shown in Room View for guestrooms and suites, not public areas.

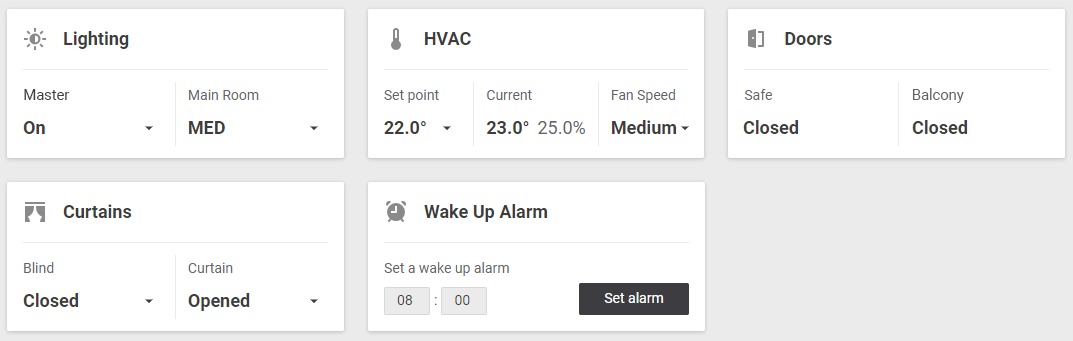

Service Tiles

Service Tiles display the current state of each service in the room, with drop-down controls for authorized users. These tiles are created, labelled, and grouped automatically based on the original templates for each room type.

iah room view service tiles

  • Lighting: May include a simple On/Off toggle or a selection of lighting scenes

  • HVAC: Temperature setpoint, current temperature and humidity, and fan speed

  • Doors: Shows Open/Closed status for any doors in the room with a dry contact switch

  • Curtains: Includes motorized curtains, blinds, and projector screens

  • Wake-Up Alarm: Sets a time to trigger the room’s Sunrise lighting sequence
    (If configured, this function may also forward the requested wake-up time to the PMS)
